|Power supply||It can be designed according to the customer's demand.|
|Filling mode||Equal pressure carbonated filling|
|Filling precision||<+5mm(liquid level)|
|PET bottle specification||Bottle diameter: 50-100mm|
|Bottle's type||500ml, 700ml, 800ml, 1000ml, 1250ml, 1500ml|

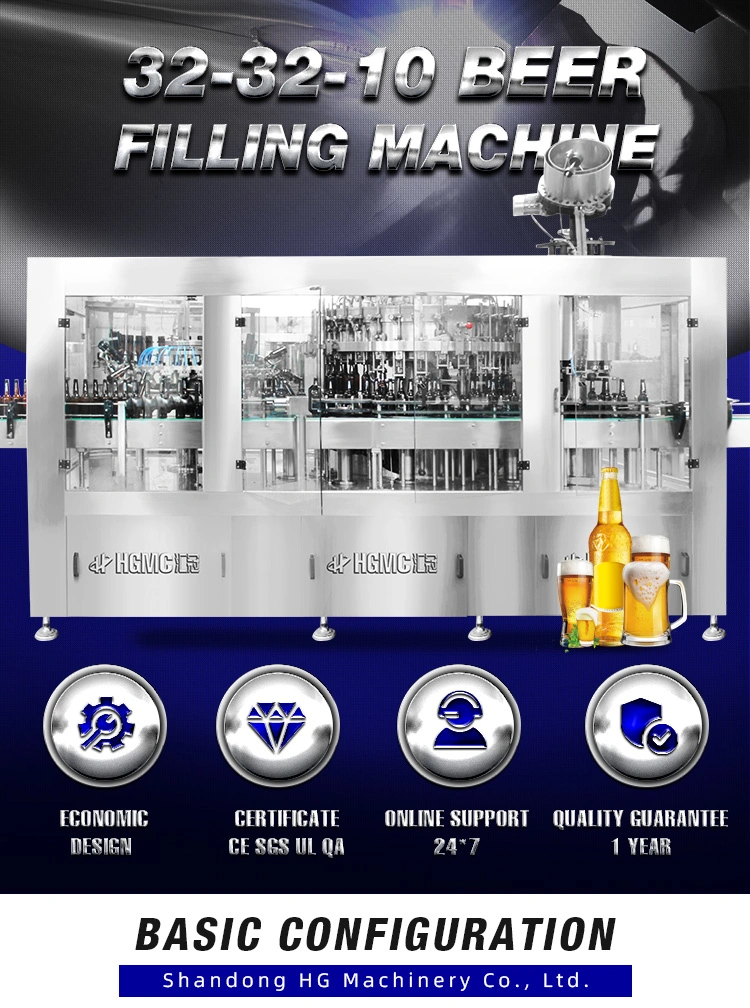

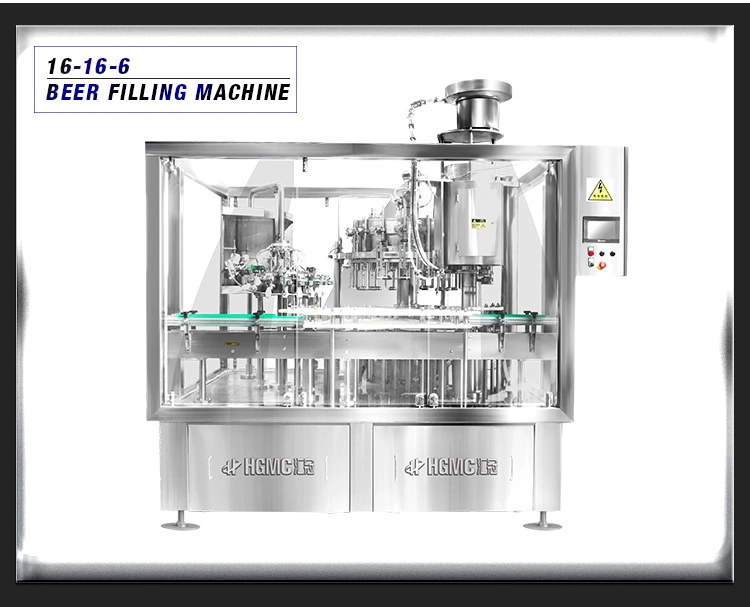

Glass bottle rinsing/filling/capping 3-in-1 Unit is a kind of professional filling machine integrator for beer filling
It is multifunctional which can be used for washing, filling and capping. It is a kind of advanced filling machine
integrator which is innovated following the process requirements of filling beer based on the importing and
assimilating the foreign advanced technology. It is applied mostly in washing, filling, and capping plastic cap
for beer, water and soft drink. It is the perfect selection to a large or medium-size brewery due to its reasonable
configuration, security of operation, dependability of running and its so convenient maintenance.
1.Compact design with advanced external filling valves, realized the true sense of isobaric/counter pressure
filling method and the machine is all-mechanical transmission, which basically reaches zero failure rate.
After two times of vacuuming and carbon dioxide flush, the filling is completely isostatic.The external filling valve
is on the outside of the beer tank. Compare this with the internal filling valve in the beer tank, external filling vale
will not touch the beer and avoid the beer pollution. Otherwise, the external valve opens and closes through
mechanical pressure, it can realize real isobaric filling and reduce the generation of air bubbles.
The capping part can be designed according to the customers demand on the cappers about capping,we
replaced the pneumatic cover with a mechanical cover,the quality and stability of the gland are improved.
Equipped with foam device according to customer's requirements high pressure water injection to push out
the air of the bottle neck to keep the beer quality.
Good quality high precision poshing can reach to 0.2um. Non-dead corner design to make the cleaning step
easy eachieved , make sure your beer good quality.
|Item||Production capacity||Filling method||Material||Dimensions|
1. Manules / Videos of machine installation, adjusting, setting, maintenance are available to you.
2. If any problems occured and you can not find out the solutions, Telecom or Online face to face communication are available around 24 hours.
3. HG engineers & technician are ready to your countries for services if you agree to pay the expenditure.
4. The machine will have 1 year warranty. During the warranty year, if any of the parts are not broken because of misoperation, we guarantee to replace free of charge. The warranty will start counting after the machine is sent out and you received the machine.
5. HG company has an independent team for after-sale service. If any emergency please call the saleman or our after-sale's manager.
