The main features of the zirconia ceramic washers
1.High density: over 6 g/cm3, which makes it the densest body of the ceramic products
2.High hardness: over 9 on Mohs scale, diamond being 10, with a satin-smooth surface finish
3.High toughness: over 1200 MPa, approx. 4 times in comparison with 95% alumina
4. Excellent wear resistance, it's much better than aluminum oxide ceramics with a longer life cycle
5. Low thermal conductivity: less than 3 W/m.k at ambient temperature, so it's an ideal thermal material
6. Good chemical and corrosion resistance, it's equivalent to above 99% alumina
The specification of the ceramic screw and washers
|Material option||Zirconia (ZrO2), Alumina(Al2O3)|
|Forming methods||Dry pressed, Ceramic injection molding, Hot pressed, ISO pressed|
|Specification||OD can be from 1 to 50mm, length can be from 10mm to 800mm|
|Precision processing||CNC machining, Precision grinding, Polishing, Lapping,|
|Tolerance||The tolerance of OD and ID can be 0.001mm, the tolerance of length can be 0.001mm|
|Key parameters||Roughness to be 0.02mm, Parallelism to be 0.001mm|
|Surface quality||Free of cracks, foreign contamination, mirror surface better than Ra0.1|
The description of zirconia ceramic parts
Zirconia ceramic parts are made of zirconium oxide ceramics which is a kind of strongest technical ceramic material with exceptional strength, high toughness, and superb reliability. These outstanding characteristics result in excellent resistance to wear and corrosion.
We have been offering a selection of partially stabilized zirconia, including Y-TZP( yttria-stabilized), MSZ ( magnesia stabilized ), CSZ- (ceria stabilized). Each stabilized zirconia provides unique and specific properties that meet the demands of extreme applications found in many industries.
With our production capability through CNC, precision grinding machines, we are able to provide many different levels of precision zirconia ceramic parts to meet customers' high precision assembly needs.

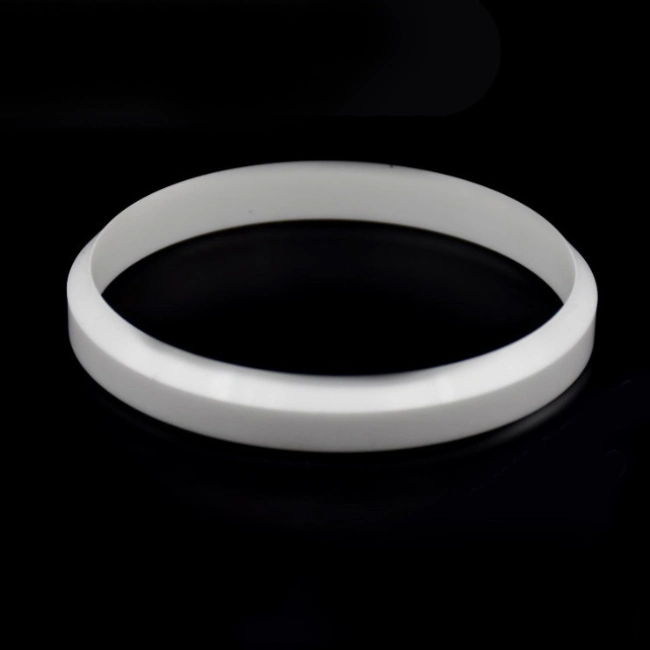

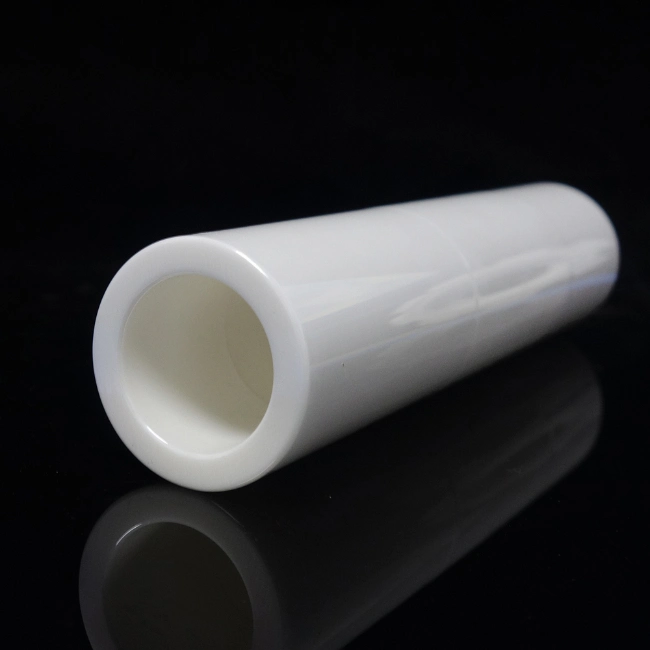

The gallery of zirconia ceramic parts
Datasheet of Technical ceramics
|Fracture toughness||Mpa m1/2||4-5||4-5||3-4||6.5-8||11|
|CTE||1×10 -6 /ºC||6.5~8.0||6.2~8.0||5.0~8.0||8.0~9.5||10.2|
|25ºC||>1 x 10 14||>1 x 10 14||>1 x 10 14||>1 x 10 11||>1 x 10 11|
|300ºC||1 x 10 12||8 x 10 11||10 12 -10 13||1 x 10 10||1 x 10 10|
|500ºC||5 x 10 10||2 x 10 9||1 x 10 9||1 x 10 6||1 x 10 6|
Our capability and strength
We have in-housing comprehensive manufacturing types of equipment, including forming, sintering,
CNC machining, precision grinding, laser cutting, and so on, it helps us to control the quality very well.
Also, it greatly benefits cost control.
The state of the art manufacturing equipment
Rigorous Quality-control System
We have the complete quality-control system per ISO9001, including IQC, IPQC, QA, and OQC process.
Typical Packaging Proposal and Transportation Methods
1. Packaging proposal
2. Regular Transporation Methods
FAQs (Frequently Asked Questions)
Q1. Are you a factory or trading company?
A: We are a manufacturer of over 15 years of experience. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials, dimensions, and designs.
