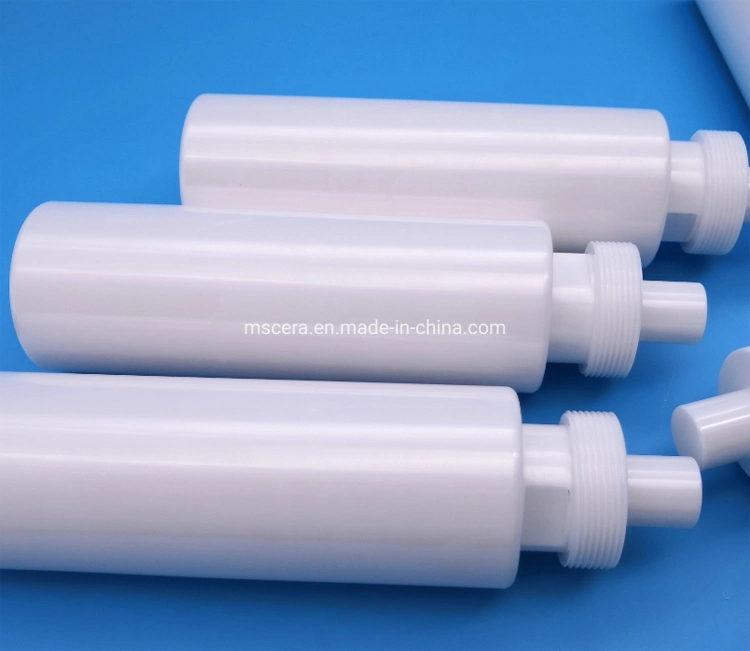

High Pressure Washer Parts ZrO2 Zirconia Ceramic Plunger for Piston Pump
1. High Pressure Washer Parts ZrO2 Zirconia Ceramic Plunger for Piston Pump Introduction.
Mission Ceramic supply high quality zirconia ceramic plunger pump. .
We have both PSZ (partially stabilized zirocnia) and FSZ (fully stabilized zirconia).
2.High Pressure Washer Parts ZrO2 Zirconia Ceramic Plunger for Piston Pump Advantage,
1.For different application, we can provide different material, like Y2O3-ZrO2, CaO-Y2O3, MgO-Y2O3.
2.Our ZrO2 ceramic rods are made by ISO pressing, which can provide a high density. About 6.0g/cm3.
We can grind and polish the rod surface after sintering to make a tight tolerance and good surface roughness.
Y-PSZ Yttria Stabilized ZrO2 Zirconia Ceramic tube rods

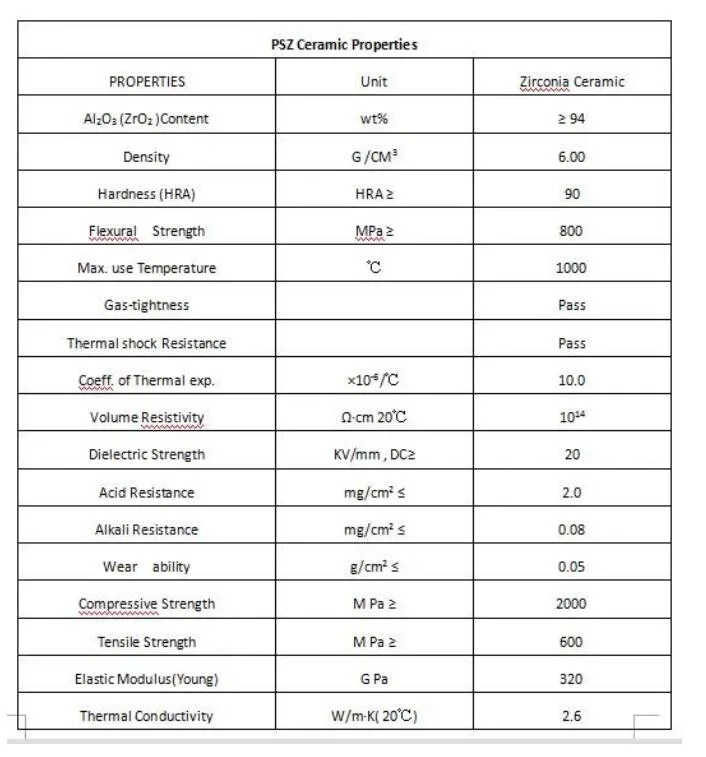

PSZ (partially stabilized zirocnia) and FSZ (fully stabilized zirconia) Technical data
PSZ (partially stabilized zirocnia) and FSZ (fully stabilized zirconia).
| Y-FSZ Ceramic Properties | ||
| Chemical content | ZrO2 | 86 wt% |
| Y2O3 | 14 wt% | |
Physical Properties | Melting point | ≥2500ºC |
| Max. operating temperature | 2200ºC | |
| Color | White | |
| Density | 5.8g/cm3 | |
| Mechanical properties | Flexural strength | 200MPa |
| Young's module | 200GPa | |
| Hardness(HRA) | 86 | |
| Thermal properties | Thermal expansion coefficient(20ºC) | 8-10X10-6 |
| Thermal conductivity | 1-2W/mk | |
| Electrical properties | Dielectric constant(1MHz25ºC) | 12 |
| Electrical resistivity(25ºC) | 109 | |
High Pressure Washer Parts ZrO2 Zirconia Ceramic Plunger for Piston Pump package
Wood box padded with foam board.
Delivery: By Express/By Air/By Sea
