Zxx-C2513 Double Sided Glass Processing Machine Glass Polishing Machine

ZXX-C2513 CNC Glass Milling machine waterjet function DescriptionunitparameterModel No.1ZXX - C2513ColumSetHeavy ironControl SystemsetLEETROAxisPCCutter change : by handDiam:¢125coller:cool waterRPM:24000POWER:7.5KWDrivesetYMPCInvertorkwBEST : 11KW Max glass size putmm3000*1800mm(Length can be no limited by adding

Featured Products

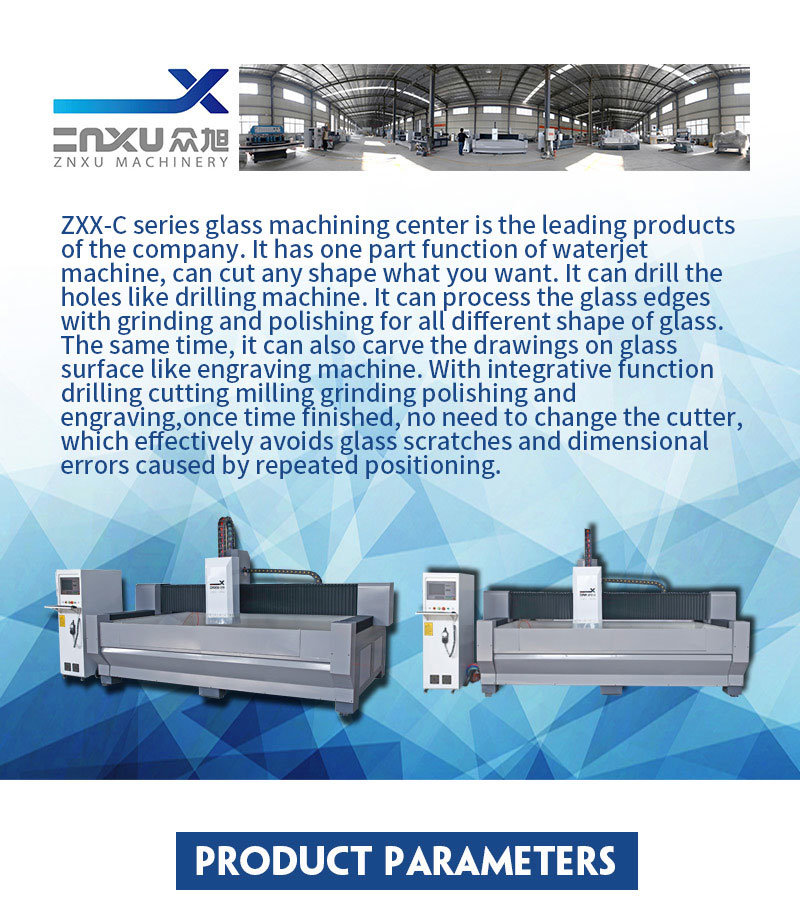

ZXX-C2513 CNC Glass Milling machine waterjet function
Zxx-C2513 Double Glass Processing Machine Glass Polishing Machine


Descriptionunitparameter
Model No.1ZXX - C2513
ColumSetHeavy iron
Control SystemsetLEETRO
AxisPCCutter change : by hand
Diam125
coller:cool water
RPM:24000
POWER:7.5KW
DrivesetYMPC
InvertorkwBEST : 11KW
 Max glass size putmm3000*1800mm
(Length can be no limited by adding table)
Max
Grinding & polishing Size
mm               2200*1100mm
Max router (milling) sizemm               2500*1300mm
Z-axis space height-openmm380
motorsetCHINT
Internal of machine structuresetHalf cover/ waterproof design
Work table load weightKG120
Positioning accuracy mm0.01
Repeated positioning
accuracy
MM0.01
Max speed (empty)M/MIN15
Max process speedM/MIN3M/MIN
Stroke protectionPCOmron,Japan
GEARPCGERMAN DMJ-1.5M High precision
Guide Screw bearingPCHIWIN
Model: Z axis with diagonal contact
Lubrication systemsetOrigin : TAIRUN
Lubrication automatically
Cooling typesetWater pump
Main axis coolingsetAutomatic thermostat cooler
Main electricsetCHINT / SCHNEIDER
Volt./FrequecnyKWAC/380v/10KW/50HZ
 (AS PER CUSTOMER REQUEST)
Machine Sizemm3900x2300x2200 mm
weightKG2200
powerKW.H11.1
 SET2 sets of suction
Two pcs of Cutter
Zxx-C2513 Double Glass Processing Machine Glass Polishing Machine
Zxx-C2513 Double Glass Processing Machine Glass Polishing Machine
Zxx-C2513 Double Glass Processing Machine Glass Polishing Machine

Zxx-C2513 Double Glass Processing Machine Glass Polishing Machine
Zxx-C2513 Double Glass Processing Machine Glass Polishing Machine
Zxx-C2513 Double Glass Processing Machine Glass Polishing Machine
FAQ
Q1: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.


Q2: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.

Q3 :How can I trust your company and your products?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.

Q4.If machine have any problem after I ordered it, what could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.
